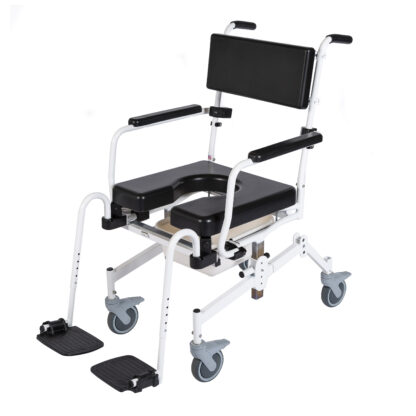

1100 Rehab Shower/Commode Chair-Seat Height/Slope Adjustable

The 1100 can be configured for facility use, used as a fitting chair during discharge preparation, but also addresses the evolving needs of the rehab client when returning home.

New & Notable

  • New frame & upholstery colors
  • 3 new frame sizes
  • New seat options
  • More support & positioning options

The 1100, Rehab Shower/Commode Chair-Seat Height/Slope Adjustable Seat, (when ordered with 24″ rear wheels, no slope adjustment with 4 caster configuration) has modular components to help alleviate the need for custom design and its consequent added costs and delivery time.   The seat height can go low enough for foot propulsion, and the height adjustment can enable safer transfers.  These options make the 1100 an easily adaptable rehab shower/commode chair for multi-user facilities and group homes.

Frame Color

Frames

Wheels/Rear Casters

Axles

Wheel Locks

Front Casters

Seats

Armrests

Leg Rests

Foot Plates

Backs

Belts

Positioning Aids

Pans

Seat Width18″20″22″
Weight Capacity350lbs.350lbs.350lbs.
Width Between Arm Rests Flip -Up with Pad20.25″22.25″24.25″
Width Between Arm Rests – Arm Troughs18.25″20.25″22.25″
Width Between Arm Rests – Height Adjustable18.75″20.75″22.75″
Seat Depth18″18″
18″
Seat Height From Floor to Top of SeatFront to Back 24″ Wheels – 20.75″ – 20″ | 19″ |18″

5″ Rear Casters – 20.75″ – 20.5″
Front to Back 24″ Wheels – 20.75″ – 20″ | 19″ |18″

5″ Rear Casters – 20.75″ – 20.5″
Front to Back 24″ Wheels – 20.75″ – 20″ | 19″ |18″

5″ Rear Casters – 20.75″ – 20.5″
Usable Seat Depth w/Solid Back18″18″18″
Leg Rest Range – Gooseneck15.75″ – 19.75″15.75″ – 19.75″15.75″ – 19.75″
Leg Rest Range – Gooseneck w/ Padded Footplate14.5″ – 18.5″14.5″ – 18.5″14.5″ – 18.5″
Leg Rest Range – Elevating (Up)16.5″ – 23.5″16.5″ – 23.5″16.5″ – 23.5″
Leg Rest Range – Elevating (Up) w/ Padded Footplate15.25″ – 22.25″15.25″ – 22.25″15.25″ – 22.25″
Leg Rest Range – Elevating (Down)16.5″ – 23.5″16.5″ – 23.5″16.5″ – 23.5″
Leg Rest Range – Elevating (Down) w/ Padded Footplate15.25″ – 22.25″15.25″ – 22.25″15.25″ – 22.25″
Arm Height from Top of Seat – Flip Up w/Pad7.75″7.75″7.75″
Arm Height from Top of Seat – Arm Troughs8″8″8″
Arm Height from Top of Seat – Height Adjustable 4″ – 12″
4″ – 12″4″ – 12″
Back Height from Top of Seat 18.5″18.5″18.5″
Gap Between Top of Seat and Bottom of Back10.5″10.5″10.5″
Maximum Back Slack1″1″1″
Seat to Back Angle13° 13°13°
Adjustable Depth Back Range2.5″2.5″2.5″
Under Seat Min. Height Clearance w/ 24″ Rear Wheels13.25″ – max tilt
15″ – least tilt
13.25″ – max tilt
15″ – least tilt
13.25″ – max tilt
15″ – least tilt
Under Seat Max. Height Clearance w/ 24″ Rear Wheels16.25″ – max tilt
18″ – least tilt
16.25″ – max tilt
18″ – least tilt
16.25″ – max tilt
18″ – least tilt
Under Seat Width Clearance w/ 24″ Wheels14.5″16.5″18.5″
Under Seat Width Clearance w/ 5″ Rear Casters15.75″17.75″19.75″
Overall Width w/ 24″ Wheels25.25″27.25″29.25″
Overall Width w/ 5″ Rear Casters & Std. Arms24.25″26.25″28.25″
Overall Width w/ 5″ Rear Casters & Height Adj. Arms22″24″26″
Overall Width w/ 5″ Rear Casters & Arm Troughs28.25″30.25″32.25″
Overall Min Length w/ 5″ Rear Casters41.5″41.5″41.5″
Overall Min Length w/ 24″ Rear Wheels44″44″44″
Back of Unit to Start of Commode Opening with 24″ Wheels17.25″17.25″17.25″
Back of Unit to Start of Commode Opening with 5″ Rear Casters14.75″14.75″14.75″
Turning Radius – Min w/ 5″ Rear Casters24″
24.5″25″
Seat Used to Generate Specifications#6099318″ x 18″ x 2.5″ Thick
