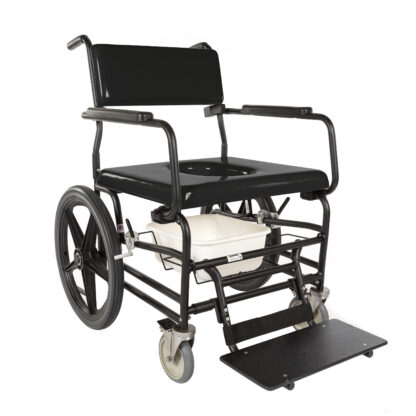

720 Bariatric Rehab Shower/Commode Chair

Many Features and options of this rehab shower/commode chair help fulfill the needs of rehabilitating patients, long-term care or homebound clients.  The stainless steel frame combines high strength with low maintenance, making the 720 the right choice shower/commode for bariatric clients.

Categories: , ,

New & Notable

  • New stainless-steel frame
  • 6 new seat & frame sizes between 20″- 30” wide
  • 3 new mobility choices, including new wheel options
  • New seat options
  • New leg rest options
  • More support & positioning options

The 720, Bariatric Rehab Shower/Commode Chair, has a rigid, stainless steel frame and is low maintenance, with a 600 pound weight capacity. There are 6 available frame widths from 20″-30″ in two inch increments. Ensolite® seating options include race-track oval shaped opening, front/rear seat opening or a solid seat. The 720 helps fulfill many needs of the rehabilitating, long-term care or home-bound bariatric client. Frame is powder-coated and available in white or black.

Frame Color

Frames

Frames Accessories

Wheels/Rear Casters

Axles

Wheel Locks

Front Casters

Seats

Armrests

Leg Rests

Foot Plates

Backs

Belts

Pans

Seat Width20″22″24″26″28″30″
Weight Capacity600lbs.600lbs.600lbs.600lbs.600lbs.600lbs.
Width between Arm Rests Flip-Up with Pad20″22″24″26″28″30″
Width between Arm Rests – Arm Troughs18″20″22″24″26″28″
Seat Depth
20″20″
20″
20″20″20″
Seat Height From Floor to Top of SeatFront to Back 20″ Wheels – 22.5″ – 22″

6″ Rear Casters – 22.5″ – 22″		Front to Back 20″ Wheels – 22.5″ – 22″

6″ Rear Casters – 22.5″ – 22″		Front to Back 20″ Wheels – 22.5″ – 22″

6″ Rear Casters – 22.5″ – 22″		Front to Back 20″ Wheels – 22.5″ – 22″

6″ Rear Casters – 22.5″ – 22″		Front to Back 20″ Wheels – 22.5″ – 22″

6″ Rear Casters – 22.5″ – 22″		Front to Back 20″ Wheels – 22.5″ – 22″

6″ Rear Casters – 22.5″ – 22″
Usable Seat Depth w/Solid Back20″20″20″20″20″20″
Leg Rest Range – Gooseneck13.5″ – 21″13.5″ – 21″13.5″ – 21″13.5″ – 21″13.5″ – 21″13.5″ – 21″
Leg Rest Range – Gooseneck w/ Padded Footplate12.25″ – 19.75″12.25″ – 19.75″12.25″ – 19.75″12.25″ – 19.75″12.25″ – 19.75″12.25″ – 19.75″
Leg Rest Range – Elevating (Up)16″ – 23″16″ – 23″16″ – 23″16″ – 23″16″ – 23″16″ – 23″
Leg Rest Range – Elevating (Up) w/ Padded Footplate14.75″ – 21.75″14.75″ – 21.75″14.75″ – 21.75″14.75″ – 21.75″14.75″ – 21.75″14.75″ – 21.75″
Leg Rest Range – Elevating (Down)16.75″ – 23.75″16.75″ – 23.75″16.75″ – 23.75″16.75″ – 23.75″16.75″ – 23.75″16.75″ – 23.75″
Leg Rest Range – Elevating (Down) w/ Padded Footplate15.5″ – 22.5″15.5″ – 22.5″15.5″ – 22.5″15.5″ – 22.5″15.5″ – 22.5″15.5″ – 22.5″
Leg Rest Range – One-Piece Footplate18″18″18″18″18″18″
Leg Rest Range – Padded FootplateSubtract 1.25″ From Above DimensionsSubtract 1.25″ From Above DimensionsSubtract 1.25″ From Above DimensionsSubtract 1.25″ From Above DimensionsSubtract 1.25″ From Above Dimensions
Arm Height from Top of Seat – Flip Up w/Pad7.5″7.5″7.5″7.5″7.5″7.5″
Arm Height from Top of Seat – Arm Troughs7.75″7.75″7.75″7.75″7.75″7.75″
Back Height from Top of Seat 16″16″16″16″16″16″
Gap Between Top of Seat and Bottom of Back8″8″8″8″8″8″
Seat to Back Angle12° 12°12°12°12°12°
Under Seat Height Clearance18.5″18.5″18.5″18.5″18.5″18.5″
Under Seat Width Clearance16″17″18″20″22″24″
Overall Width w/ 20″ Wheels28.5″30.5″32.5″34.5″36.5″38.5″
Overall Width w/ 6″ Rear Casters & Std. Arms24.25″26.25″28.25″30.25″32.25″34.25″
Overall Width w/ 6″ Rear Casters & Arm Troughs27.5″29.5″31.5″33.5″35.5″37.5″
Overall Min Length w/ 6″ Rear Casters41.5″
41.5″41.5″41.5″41.5″41.5″
Overall Min Length w/ 20″ Rear Wheels42″
42″42″42″42″42″
Back of Unit to Start of Commode Opening with 20″ Wheels13.75″13.75″13.75″13.75″13.75″13.75″
Back of Unit to Start of Commode Opening with 6″ Rear Casters13.25″13.25″13.25″13.25″13.25″13.25″
Seat Used to Generate Specifications#6111130″ x 20″ x 2.5″ Thick
